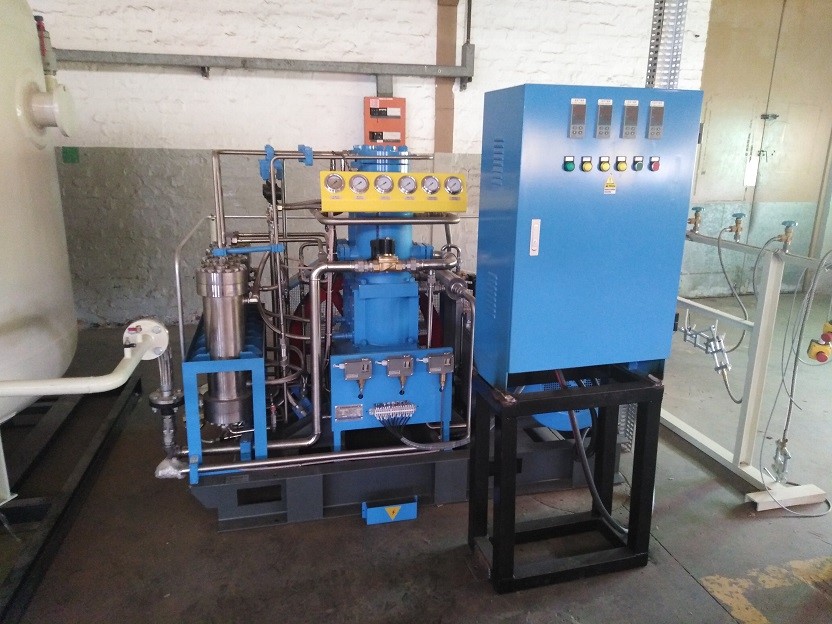

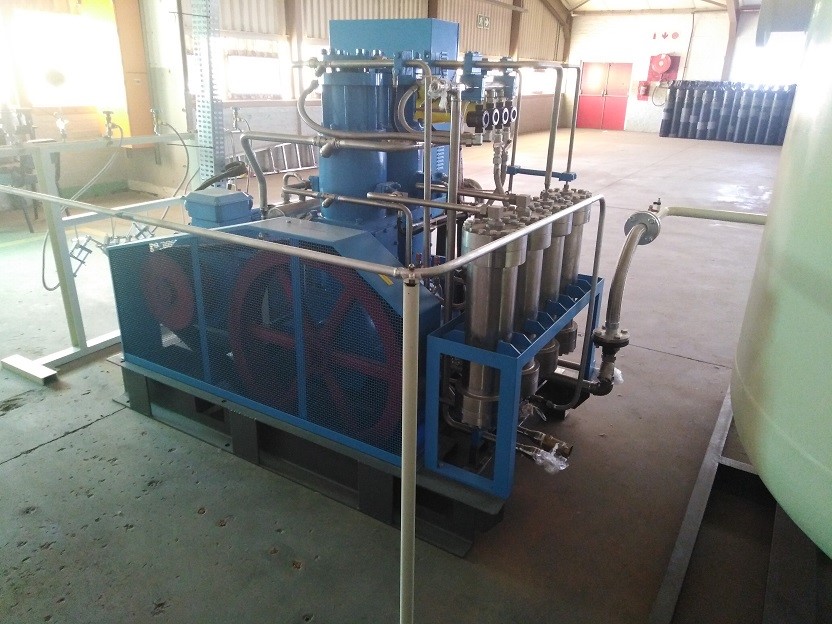

150NM3 150BAR Oil Free High Pressure Oxygen Filling Compressor

1

Nagtatrabaho medium

Dry oxygen gas.

2

modelo

Gow-150 / 4-150.

3

Istraktura

langis libre reciprocating.

4

Presyon ng yugto

4

5

Rated na kapasidad (standard) nm.³/ H.

150nm3 (@ 4barg)

6

Rated inlet Pressure MPA (g)

0.3-0.4.

7

Rated outlet. Pressure MPA (g)

15.0

8

Ipasok temperatura℃

≤45

9

Outlet. temperatura℃

≤130

10

Magpadala ng gas temperatura℃

≤55

11

Baras bilis r / min

300                                ※

12

Paglamig paraan

Air. paglamig

13

Lubricate Way.

Shaft and. Connect Rod.

Grasa selyo

Silindro

Langis libre Lubricate.

14

Motor Power KW.

45kw.                               ※

15

Magpadala ng paraan

Belt driven.

16

Paraan ng pag-install

Simple basement.

17

Awtomatiko Kontrolin ang mga bahagi

Labis na karga, huminto awtomatiko

18

Panlabas na dimensyon L×W×H MM.

1800x1500x1800.          ※

19

Labanan at labasan MM

50 /M22 × 1.5.

20

Timbang (kg

2200                      ※

21

Boltahe

380/400 / 415V. 50hz / 3phase 440V / 60Hz / 3phase.
